How to Use CAD Software: A Practical Step-by-Step Guide

Learn how to use CAD software with a beginner-friendly, step-by-step guide. From setup to drafting, this practical tutorial covers core tools and accurate designs.

SoftLinked
SoftLinked Team
·5 min read
CAD Design Guide - SoftLinked
Photo by Bru-nOvia Pixabay
Quick AnswerSteps

You will learn how to use CAD software through a clear, step-by-step workflow. Start with setting up your environment, then master the interface and core drawing tools, and finally apply practical best practices for accurate designs. This quick guide sets you up to draft confidently and efficiently. By the end you will translate ideas into precise dimensions and manufacturable parts.

What CAD software is and why it's essential

Computer-aided design (CAD) software is a category of tools that let engineers and designers create precise drawings and 3D models. Unlike freehand drawing, CAD enforces geometry and constraints, supports parametric modeling (where changes in one feature propagate through the model), and integrates with simulations, manufacturing workflows, and documentation. For a software engineer or engineering student, learning CAD is foundational because it translates ideas into measurable dimensions and manufacturable designs. In practice, CAD speeds iteration, reduces human error, and improves collaboration with teams, suppliers, and customers. As you begin, focus on understanding two core ideas: the difference between 2D drafting and 3D modeling, and the value of parametric history that links features. The SoftLinked team emphasizes that mastering these concepts early pays off in longer-term productivity. According to SoftLinked, structured practice accelerates mastery and closes skill gaps quickly. This article uses a practical, task-based approach to help you progress from basics to real-world projects.

Choosing the right CAD tool for your goals

There are many CAD packages, and your choice should align with the tasks you plan to perform. If you mainly draft 2D layouts, a lightweight 2D CAD may be enough; for mechanical parts or architectural components, a robust 3D parametric tool is usually better. Consider licensing models (subscription vs perpetual), platform compatibility (Windows vs macOS vs Linux), and whether you need cloud collaboration features or offline work. For education and hobbyists, open-source CAD like FreeCAD can reduce cost while teaching core concepts; for industry-ready workflows, commercial packages often provide richer libraries, standards, and support. When evaluating options, test core features: sketching, constraints, modeling history, assemblies, and export formats. According to SoftLinked, focusing on a small, well-supported tool you can grow with is more effective than chasing the latest feature set. The goal is to choose a tool that matches your current needs and can scale with your growing skill set.

Hardware and software prerequisites

Before you install CAD software, ensure your computer meets basic requirements: a capable CPU, adequate RAM, and graphics acceleration compatible with the software's requirements. Check the vendor's system requirements and any recommended graphics drivers. Install the latest version of your operating system and set up a clean workspace with minimal background processes to avoid slowdowns. Disable auto-saves during heavy operations if the software offers that option, then re-enable them to protect your work. Create a dedicated CAD folder with a clear naming convention to store files by project, version, and client. Finally, download a starter dataset or sample project from the software's community to practice without risking your own designs. SoftLinked Analysis, 2026 highlights that a stable environment reduces cognitive load and accelerates learning during early practice sessions.

Most CAD programs share a familiar layout: a drawing space (the canvas), a feature or tool ribbon, property editors, and a tree-like model browser. Start by locating the origin, grid, and units in your project; learn how to switch between 2D sketches and 3D models; and understand how constraints and dimensions guide geometry. The primary operations you will use are sketch, extrude, revolve, and fillet; 2D constraints keep lines and arcs in place, while 3D features modify solid bodies. Learn keyboard shortcuts for common actions and customize the toolbar to fit your workflow. Practicing basic navigation reduces friction when you move to more advanced features. This knowledge creates a smooth hand-off between design intent and geometric realization.

Core drawing tools and workflows

The core toolkit typically includes lines, arcs, circles, rectangles, and spline curves for 2D drafting, plus operations like trim, offset, mirror, and patterning. In 3D modeling, you will use extrude, revolves, lofts, sweeps, and Boolean operations to build bodies from sketches. A robust CAD workflow blends sketching with parameter-driven features so a single change propagates through the model. Work in a feature tree or history stack, so you can edit or revert steps as needed. Reference geometry, origin alignment, and construction planes help keep your features organized. Practice by creating a simple parametric part (for example, a bracket) and iterating through dimensions and constraints to see how changes affect the finished geometry. This practice builds confidence in modeling real components.

Creating a simple 2D sketch and turning it into a 3D model

Begin with a flat 2D sketch that defines the silhouette and critical dimensions. Use constraints to fix geometry: specify perpendicularity, tangency, and equal lengths where appropriate. Once the sketch is fully constrained, switch to 3D to extrude or loft the profile into a solid body. Add features such as holes, fillets, chamfers, and ribs to simulate real-world parts. Continuously verify that your model matches the intended size and fit by applying quick measurements and tolerance checks. Finally, assemble multiple parts in an assembly to validate clearance and alignment. This step-by-step approach keeps the process approachable while reinforcing the connection between a sketch and a usable part.

Drafting practices, constraints, and dimensions

Good drafting practice relies on named layers, consistent units, and well-defined tolerances. Use constraints to capture intent rather than relying on manual repositioning. Dimensions should be clear, unambiguous, and placed on the appropriate views; avoid over-constraining, which can slow performance. Add notes and annotations to communicate manufacturing requirements, such as finishes or surface treatments. Save incremental versions regularly and maintain a changelog to track decisions. When you export, choose formats appropriate for the next stage of the workflow (2D drawings for fabrication, 3D models for simulation). Following these conventions improves collaboration with teammates, suppliers, and clients.

File management, collaboration, and interoperability

CAD projects typically involve multiple files: parts, assemblies, drawings, and libraries. Adopt a hierarchical folder structure and consistent naming conventions to prevent confusion as projects scale. Use version control or check-in/check-out workflows to coordinate team edits. Export to standard formats like STEP, IGES, DXF/DWG, or STL to ensure interoperability with collaborators who use different tools. Consider setting up a shared repository or cloud workspace for non-sensitive data and a local workspace for sensitive or proprietary designs. Document your file conventions in a readme file so new team members can contribute quickly. A well-organized CAD environment reduces rework and accelerates product development.

Quick-start project plan to practice safely

To start applying what you've learned, design a small practical part and follow a structured practice plan. Phase 1: sketch and constrain a simple silhouette, Phase 2: add depth with extrude features, Phase 3: refine with fillets and chamfers, Phase 4: create an assembly with two or more parts, Phase 5: export drawings and a 3D model. Allocate time for setup, modeling, validation, and documentation. Use a project checklist to ensure you meet milestones and quality controls. By deliberately pacing your practice, you’ll move from theory to reliable, repeatable CAD workflows.

Tools & Materials

  • Computer with CAD software installed(Ensure compatible OS and access to the vendor's license or a free/trial option.)
  • Basic input devices(Mouse with precision; consider a drawing tablet for finer control.)
  • Starter dataset or sample project(Use vendor-provided samples to practice features without risking your own work.)
  • Reference materials(Engineering standards, catalogs, or design notes for context.)

Steps

Estimated time: 2-3 hours

  1. 1

    Install and activate CAD software

    Download the installer from the vendor, choose a license type, and complete the activation process. Verify you can open a new project and access essential tools. This step ensures you have a stable baseline before modeling.

    Tip: Follow the vendor's installation guide exactly to avoid missing components.
  2. 2

    Set up your workspace and units

    Configure default units (mm, inches, etc.), grid settings, and projection modes. Create a dedicated project folder and set preferences for autosave and file paths to stay organized.

    Tip: Use consistent units across all parts to prevent scaling errors later.
  3. 3

    Create a new project and template

    Start a new project with a clean template that includes predefined layers, unit settings, and grid. Save the template for reuse on future projects to speed up onboarding.

    Tip: Label templates clearly (e.g., ProjectName_Template_v1) to avoid overwriting past work.
  4. 4

    Learn basic 2D sketching

    Draw simple profiles using lines, arcs, and circles. Practice constraining geometry and applying dimensions to lock the sketch in place.

    Tip: Constrain aggressively to prevent accidental drift during edits.
  5. 5

    Apply constraints and dimensions

    Add geometric constraints (perpendicular, parallel, equal) and linear/angular dimensions. Use constraints to express intent rather than brute-force placement.

    Tip: Keep a habit of verifying dimensions with measurement tools after changes.
  6. 6

    Turn a 2D sketch into 3D

    Switch to 3D, apply extrusion or loft to convert the sketch into a solid. Add simple features like holes or chamfers to approximate a real part.

    Tip: Test multiple extrusion depths to see how the part behaves under load.
  7. 7

    Refine with features

    Add fillets, rounds, holes, and ribs. Use a feature tree to adjust parametric values and observe how geometry responds.

    Tip: Keep features ordered logically to make edits intuitive later.
  8. 8

    Create an assembly

    Assemble multiple parts to check clearances and interfaces. Validate mating relationships and movement constraints.

    Tip: Use simplified representations for complex assemblies to keep performance manageable.
  9. 9

    Annotate and render

    Add dimensions, notes, and tolerances to drawings. Apply materials or simple renders to communicate intent visually.

    Tip: Annotate critical tolerances in a dedicated note block for clarity.
  10. 10

    Export and share

    Export to standard formats (e.g., STEP, DXF, STL) for downstream processes. Save a final package with all related files for easy handoff.

    Tip: Include a readme file describing file naming and versioning conventions.
Pro Tip: Regularly save versions to prevent data loss during modeling.
Pro Tip: Use constraints to capture design intent early.
Warning: Avoid over-constraining sketches which can slow performance.
Note: Keep a consistent file naming convention across projects.
Pro Tip: Review exports with stakeholders to ensure compatibility.

Your Questions Answered

What is CAD software and what does it do?

CAD software enables precise 2D drawings and 3D models, enforcing geometry and enabling parametric changes. It integrates with simulations and manufacturing workflows to improve accuracy and collaboration.

CAD software creates precise drawings and models, supports changes that propagate through the design, and works with simulations and manufacturing tools.

Is CAD hard to learn for beginners?

Like any tool, CAD has a learning curve. Start with simple sketches and gradually add features. Regular practice and small projects help reinforce concepts faster.

CAD can be learned step by step; begin with simple sketches and build up your projects as you practice.

Do I need expensive software to start?

Many CAD packages offer free or trial versions for beginners. Start with these options to learn core concepts before investing in a full license.

You can begin with free or trial CAD software to learn the basics before purchasing.

What file formats are common for CAD exports?

Common exports include STEP, IGES, DXF/DWG, and STL. Choose formats based on downstream use, such as manufacturing or simulation.

Exports like STEP, DXF, and STL are standard for interoperability with other tools.

How long does it take to learn CAD?

Learning CAD is a gradual process. Set aside regular practice sessions and tackle increasingly complex projects to build proficiency over weeks to months.

With steady practice, you’ll progress from basics to more advanced modeling over weeks.

What is parametric modeling?

Parametric modeling links features with parameters. Changing one value updates dependent geometry automatically, enabling flexible design iteration.

Parametric modeling uses adjustable parameters to drive geometry changes throughout the model.

Watch Video

Top Takeaways

  • Learn CAD fundamentals before advanced features.
  • Choose a tool that scales with your goals.
  • Prioritize constraints and dimensions for robust designs.
  • Organize files with clear naming and versioning.
  • Practice with small projects to build confidence.

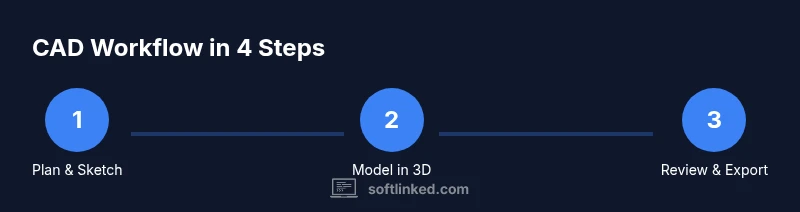

Process diagram showing CAD workflow from planning to export.
CAD workflow infographic
